The Zeetex ZDR MAX is a drive axle tire built for mileage, durability, and confident handling. Tie-bars between blocks enhance tread stability and reduce irregular wear, extending tire life. Its wide tread and deep grooves ensure long-lasting mileage, while optimized groove angles deliver precise handling. Full-depth grooves improve wet traction, and high-density transverse grooves provide reliable grip and stability in all conditions.

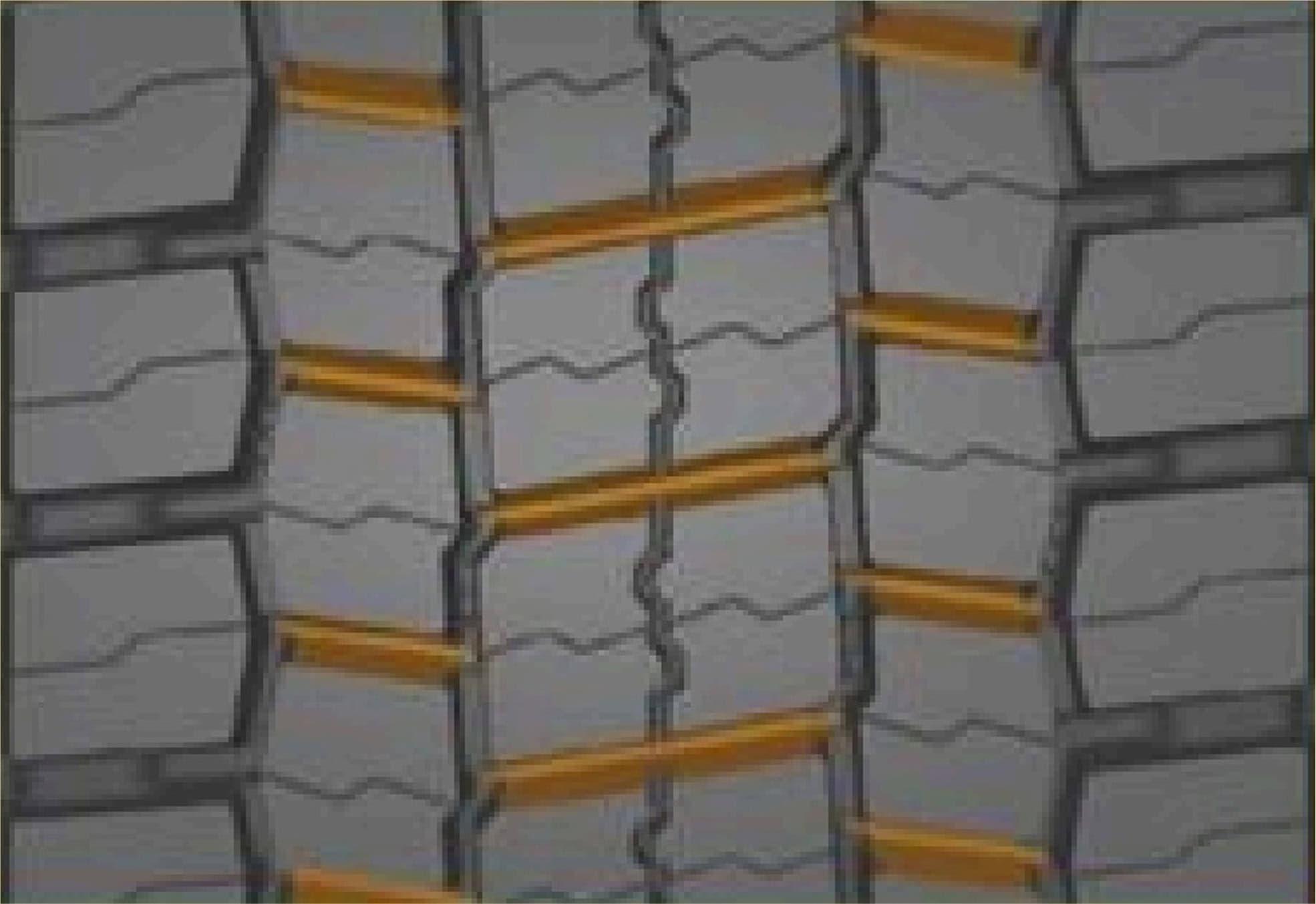

The tie-bars between the pattern blocks helps improve tread stability and reduce heel to toe wear,

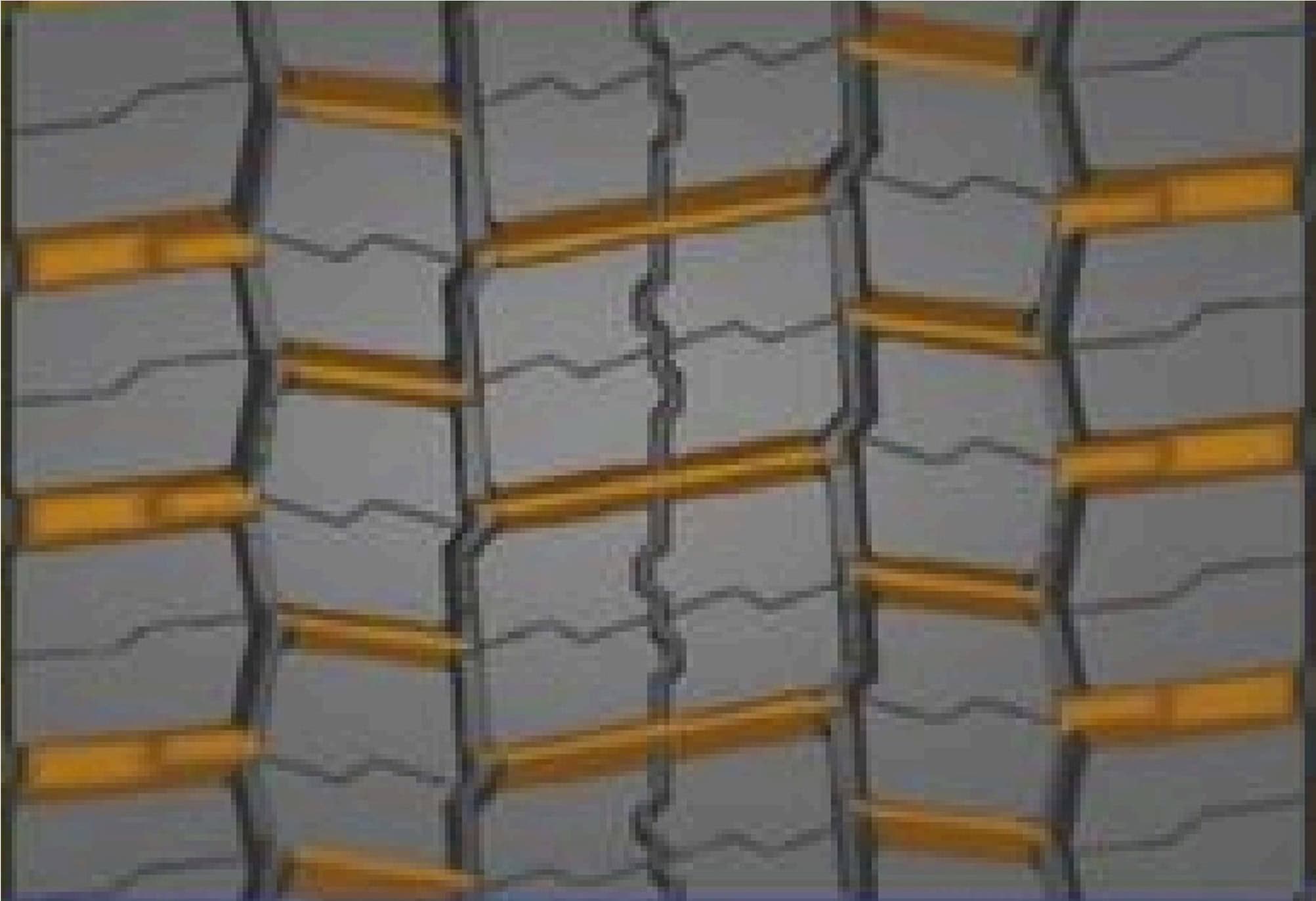

Full-depth horizontal grooves can quickly drain water into the main groove, improving the traction performance of the wet.

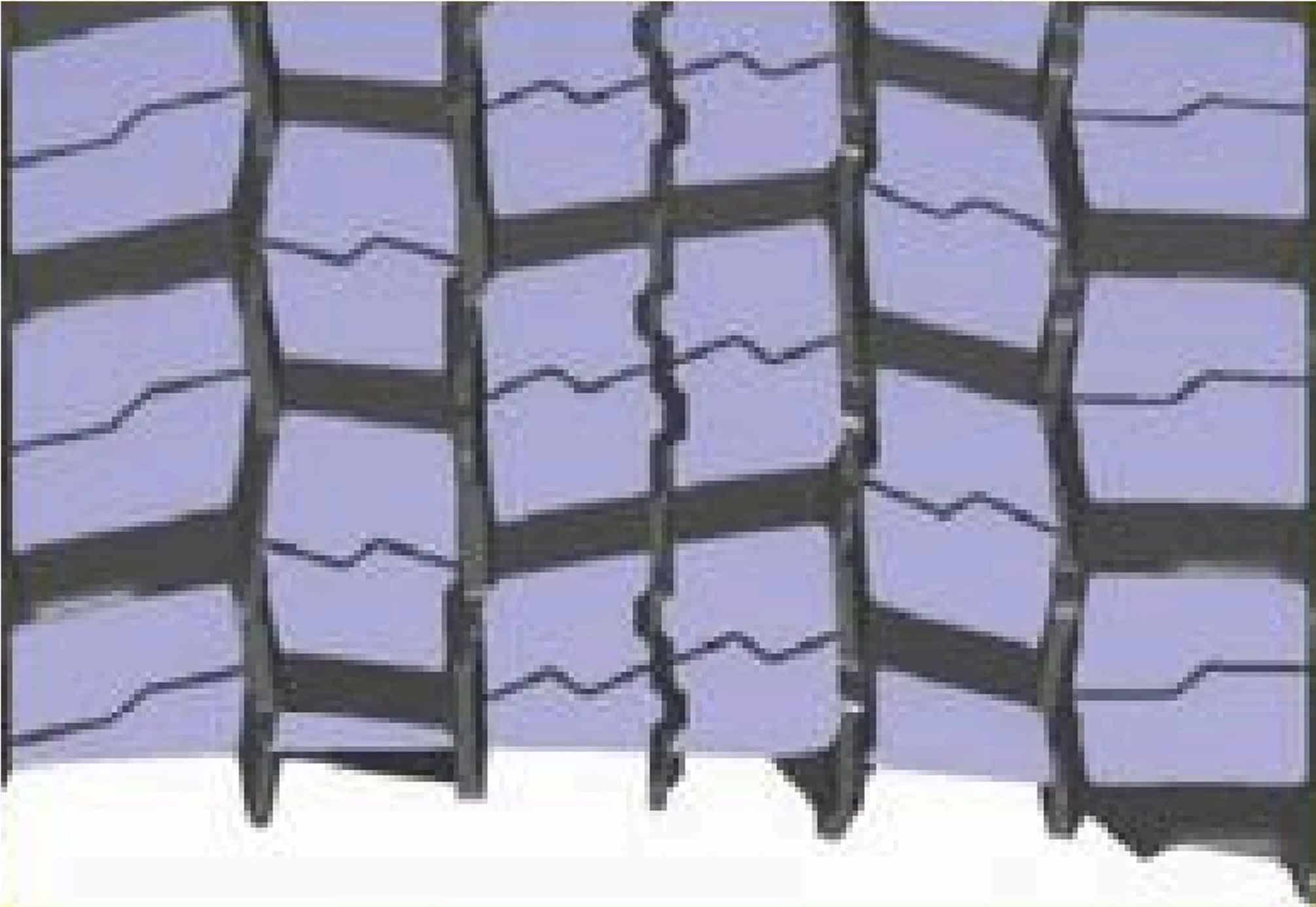

Wide tread and deep main groove provide excellent mileage performance.
Optimized pattern groove angle design improves handling performance.
| Size | PR | Load Index | Maximum Load Single | Maximum Load Dual | Max Inflation Pressure | Rim Width | Section Width | Overall Diameter | Tread Depth |
|---|---|---|---|---|---|---|---|---|---|
| kgs | Kgs | psi | inches | mm | mm | mm | |||
| 215/75R17.5 | 16 | 126/124 | 1700 | 1600 | 102 | 6 | 211 | 767 | 15 |
| 235/75R17.5 | 16 | 132/130 | 2000 | 1900 | 112 | 6.75 | 233 | 797 | 16 |
| 265/70R19.5 | 16 | 140/138 | 2500 | 2360 | 112 | 7.5 | 262 | 867 | 16 |
| 295/80R22.5 | 18 | 152/148 | 3550 | 3150 | 123 | 9 | 298 | 1044 | 20 |
| 315/70R22.5 | 18 | 154/150 | 3750 | 3350 | 131 | 9 | 312 | 1014 | 21 |
| 315/80R22.5 | 20 | 156/150 | 4000 | 3350 | 123 | 9 | 312 | 1076 | 21 |
